Competitive prices ERTi-2 Erti-7 Erti-12 titanium TIG MIG welding wire
1. Product information of titanium welding wire
Grade: ERTi-1, ERTi-2, ERTi-5, ERTi-7, ERTi-12
Standard: AWS A5.16
Application: welding
Size: 0.8mm/1mm/1.2mm/1.6mm/2mm/2.4mm/3mm/3.2mm etc.
Shape: Straight, Spool, Coil
Surface: Polishing, Pickling
Available Diameter, Type of Titanium Welding Wire
| Size (mm) | Φ0.8 | Φ 1.0 | Φ1.2 | Φ1.6 | Φ2.0 | Φ2.4 | Φ 2.5 | Φ3.0 | Φ3.2 | Φ 4.0 | Φ4.8 | Φ 5.0 |
| Size (inch) | 0.031" | 0.039" | 0.047" | 0.062" | 0.079" | 0.093" | 0.098' | 0.12" | 0.125" | 0.16' | 0.19' | 0.20' |
| Straight | | | | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Spool | √ | √ | √ | √ | | | | | | | | |
| Coil | | | | √ | √ | √ | √ | √ | √ | √ | √ | √ |
AWS A5.16 ErTi-2 titanium MIG & TIG welding wire:
Commercially Pure Titanium Grade 2 has high strength and excellent cold forming properties. It is great for welding and has excellent resistance to oxidation and corrosion.
Applications
Aerospace, Automotive, Chemical Processing & Chlorate Manufacturing, Desalination, Architecture, Hydro Carbon Processing, Marine, Medical, Power Generation
AWS A5.16 ErTi-7 titanium MIG & TIG welding wire:
Titanium Grade 7 has physical and mechanical properties equivalent to Grade 2. It has excellent welding and fabrication properties and is extremely resistant to corrosion especially from reducing acids.
Applications
Chemical processing, Desalination, Power generation
AWS A5.16 ErTi-12 titanium MIG & TIG welding wire:
Titanium Grade 12 alloy is similar to Titanium Grades 2 except that Titanium Grade 12 has 0.3% molybdenum and 0.8% nickel. This offers enhanced corrosion resistance.
Applications
Chemical processing, Desalination, Power generation, Industry
2. Our company
- As a leading manufacturer & trader of titanium welding wire for over 16 years, Baoji Lihua has many sizes in our stock and many of them in large quantitites, which can ensure immediate delivery.
- We have exported our titanium welding wire to many countries, including Russia, Canada, Turkey and Netherlands etc. The quality of our products is widely recognized.
- Customized products are always welcomed.
- We know the market very well so our price will make you more competitive.
- We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.

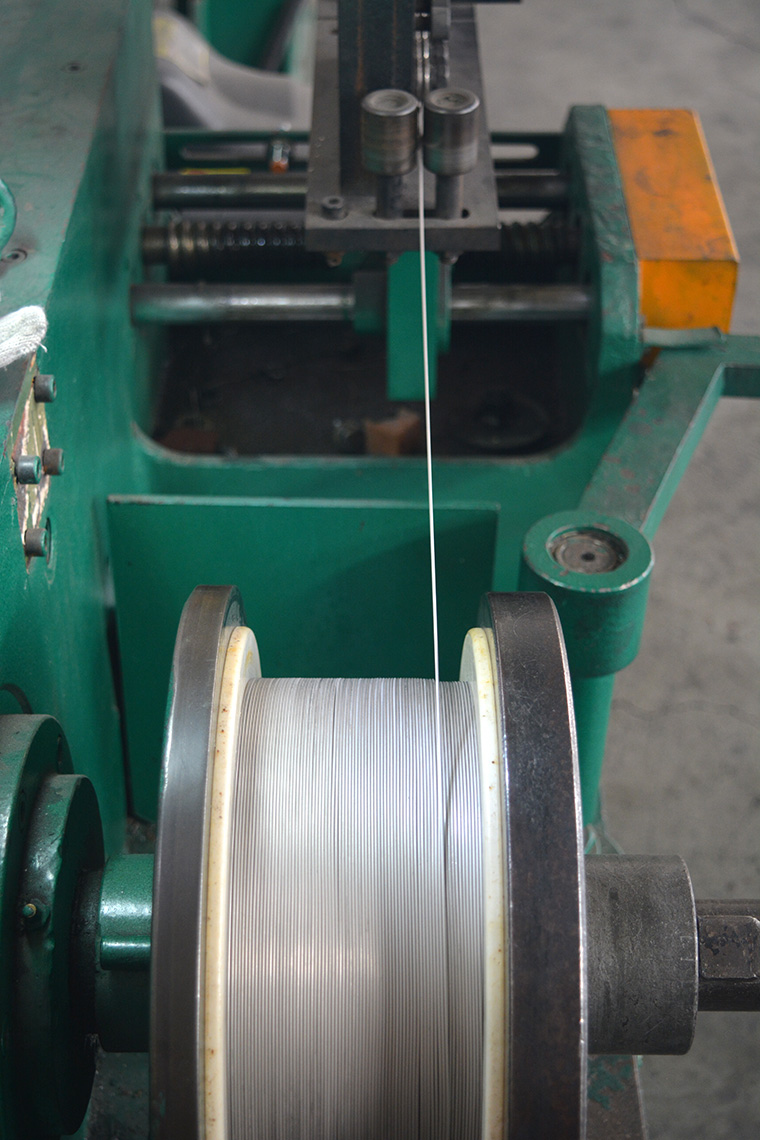

3. Deailed images of titanium welding wire
k
4. Chemical requirements of titanium welding wire
| ERTi | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
| 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
5. Tensile requirements of titanium welding wire
| ERTi | Tensile strength(min) | Yield strength(min) | Elongation(%) |
| ksi | M Pa | ksi | M Pa |
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 12 | 70 | 438 | 50 | 345 | 18 |
